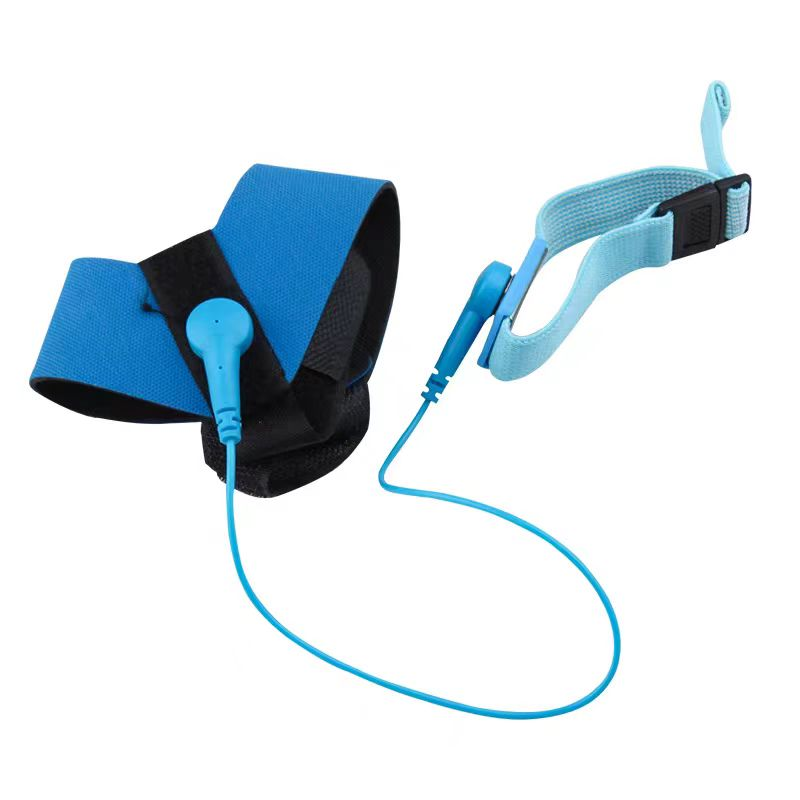

Anti-Static Ankle Strap
product details
Characteristics
1. Effective ESD Protection
Technology: Conductive carbon-infused elastomer core with 1MΩ–10MΩ resistance (per IEC 61340-5-1), ensuring safe static dissipation without risk of sudden discharge.
Grounding: Includes a 10ft (3m) retractable cable with reinforced alligator clip for secure attachment to floor grounding points or ESD mats.
2. Adjustable Fit
Design: Expandable TPU/silicone band with heavy-duty hook-and-loop closure, accommodating ankle circumferences of 20–35 cm (fits over shoes or bare ankles).
Ergonomics: Low-profile, non-slip design ensures comfort during prolonged wear (12+ hours) and compatibility with safety footwear.
3. Durable Construction
Materials: Double-layer construction with abrasion-resistant polyester exterior and moisture-wicking conductive lining. Tensile strength >80N, resistant to oils and solvents.
Longevity: Corrosion-resistant stainless steel snap contacts rated for >50,000 connections; cable withstands 200+ lbs of pull force.
4. Versatile Use
Compatibility: Integrates with ESD footwear testers or centralized grounding systems in industrial facilities.
Environmental Resilience: Operates in -30°C to 70°C and humidity up to 95%, suitable for harsh environments like cold storage labs or humid production floors.
application
1. Electronics Assembly
Scenario: During precision assembly tasks (e.g., soldering microchips, handling PCBs), static buildup from operators can damage sensitive components (e.g., ICs, capacitors).
Function: The ankle strap safely channels static charges to ground via a coiled cable, ensuring continuous grounding even when hands are occupied. Ideal for technicians moving between workstations or standing for extended periods.
Typical Industries: Semiconductor fabrication, automotive electronics, and consumer electronics production lines.
2. Computer Building
Scenario: Installing ESD-sensitive hardware (e.g., SSDs, motherboards) in environments where static may accumulate from flooring or clothing.
Function: Connects to grounded floor mats or dedicated ESD flooring systems, maintaining a static-safe zone around the workstation without restricting hand movement.
User Groups: PC assemblers, data center technicians, and hardware upgrade teams.
3. Laboratory Work
Scenario: In dynamic lab settings (e.g., material science labs, bio-electronics research), static interference can skew measurements or attract contaminants.
Function: Provides mobility for researchers moving between instruments (e.g., centrifuges, spectrometers) while ensuring constant grounding compliance.
Compliance: Meets ANSI/ESD S20.20 and ISO 14644 clean room standards for static control.
4. DIY Projects
Scenario: Prototyping or repairing devices in home workshops with ESD-prone surfaces (e.g., vinyl flooring, wooden benches).
Function: A hands-free grounding solution for makers working on robotics, IoT devices, or 3D printers, preventing latent ESD damage to components.
Advantage: Eliminates the need to tether hands, enhancing flexibility during complex builds.
