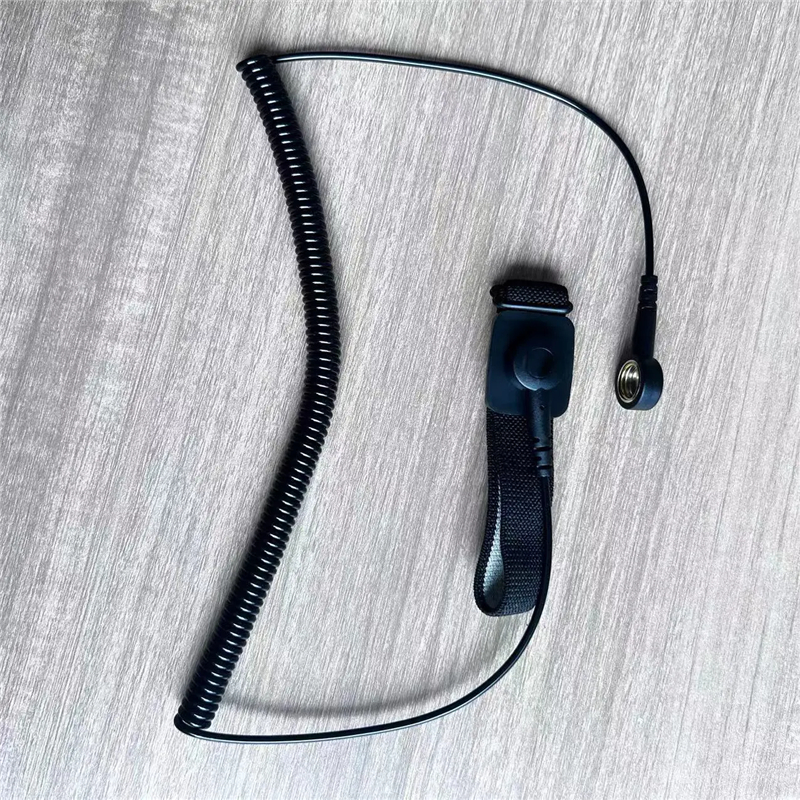

Anti Static Elastic Wrist Strap
product details
Characteristics
1. Effective ESD Protection
Technology: Built-in conductive fibers/carbon layers with a resistance range of 1MΩ–10MΩ (compliant with IEC 61340-5-1), enabling safe, gradual static dissipation.
Grounding: Includes an alligator clip and coiled cable for reliable connection to shared ground points (e.g., workstation grounding ports).
2. Adjustable Fit
Design: Elastic TPU/silicone band with hook-and-loop fastener or snap-button adjustment, fitting wrist circumferences of 15–25 cm (covers 95% of adult sizes).
Ergonomics: Pressure-distributed design ensures comfort during extended use (up to 8-hour shifts).
3. Durable Construction
Materials: Outer abrasion-resistant nylon + inner conductive yarn, with tensile strength >50N and resistance to sweat/alcohol corrosion.
Longevity: Spring-loaded snap contacts support >100,000 connection cycles; nickel-plated metal parts resist oxidation.
4. Versatile Use
Compatibility: Works with ground continuity testers (real-time alerts) or integrates into full ESD systems (e.g., anti-static shoes, garments).
Environmental Resilience: Operates in temperatures from -20°C to 60°C and humidity levels of 10%–90% without performance loss.
application
1. Electronics Assembly
Scenario: During the assembly of precision components (e.g., circuit boards, microchips, smartphones), human-body static (up to thousands of volts) can damage sensitive parts like CMOS or transistors.
Function: The wrist strap continuously drains static charges via a grounded cable, ensuring the operator and workstation remain at the same potential to prevent irreversible electrostatic discharge (ESD) damage.
Typical Industries: Semiconductor manufacturing, SMT production lines, and consumer electronics factories.
2. Computer Building
Scenario: Installing ESD-sensitive components (e.g., CPUs, RAM, GPUs) risks static buildup from clothing friction or dry environments.
Function: By connecting the strap to a grounded PC case or mat, it maintains an equipotential environment, preventing hardware failures (e.g., motherboard short circuits).
User Groups: DIY PC builders, IT technicians, and repair specialists.
3. Laboratory Work
Scenario: In precision labs (e.g., nanotechnology, optical instrumentation), static can disrupt equipment accuracy or attract dust to samples.
Function: The strap grounds operators to eliminate static interference, protecting high-value instruments (e.g., electron microscopes) and ensuring data integrity.
Compliance: Meets ANSI/ESD S20.20 standards and is suitable for cleanroom environments.
4. DIY Projects
Scenario: When soldering Arduino, Raspberry Pi, or other open-source hardware in non-professional settings (e.g., homes, makerspaces), carpets or plastic surfaces may generate static.
Function: A cost-effective solution to prevent latent component damage (e.g., MCU logic errors) caused by ESD.
Advantage: Lightweight, easy to use, and requires no complex setup.
