Grounding Conductive Rubber Mat
01

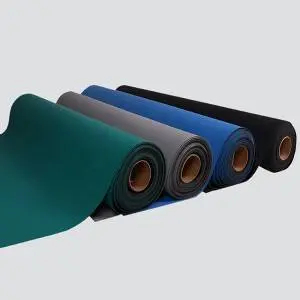

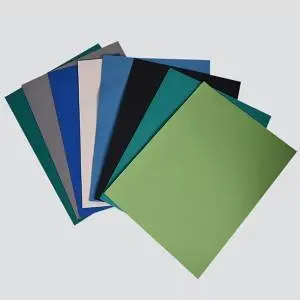

Anti-Static Mat (Dull Surface)
product details
specification
| Brand | 3LTEX |
| Product Name | Anti-static mat/sheet/pad/cushion |
| Part # | ESD-1001 |
| Material | Anti-static material and static dissipate synthetic rubber |
| Size | 10mx1.5m, 10mx1.2m, 10mx1.0m, 10mx0.9m, 10mx0.8m, 10mx0.7m, 10mx0.6m |
| Color | Green/Black, Blue/Black, Gray/Black, Yellow/Black, Black/Black, White/Black |
| Thickness | 1.0mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm |
| Conductivity | 10⁶-10⁹Ω |
| Style | dull |
| Meter resistance | 10⁶-10⁹Ω | Tensile strength | 3.6MPA |
| Bottom resistance | 10³-10⁵Ω | Elongation at break | 188% |
| Volume resistance | 10⁵-10⁸Ω | Tear strength (right angle) | 20.6KN/M |
| Abrasion rate | 0.02G/CM2 | Resilience | 14% |
| Static removal time | <0.1s | Impact brittleness temperature | 300℃no damage |
Features
Green and environmental protection, anti-static rubber sheet resistance is stable, eliminates the accumulation of static electricity on the human body and the environment, prevents static electricity hazards and accidents, effectively leaks the static electricity on the human body, tooling, equipment, and materials into the earth, and eliminates the harm of human body and environment static electricity. Prevent fire and explosion accidents caused by electrostatic discharge in the production site of flammable and explosive products; prevent the breakdown of components and components caused by electrostatic discharge in the production site of electronic products; relieve the electrostatic shock and mental burden caused by electrostatic discharge of operators.
Physical properties
Acid resistance, alkali resistance, oil resistance,high temperature resistant to 300℃ without discoloration, 400℃ non-burning, low temperature resistance -30℃~-70℃ without decomposition; the color is generous, extremely lining the workbench, and the production environment. In addition to all the functions and properties of anti-static anti-slip table mats and floor mats, anti-static anti-slip table mats and floor mats also have a good anti-slip effect.

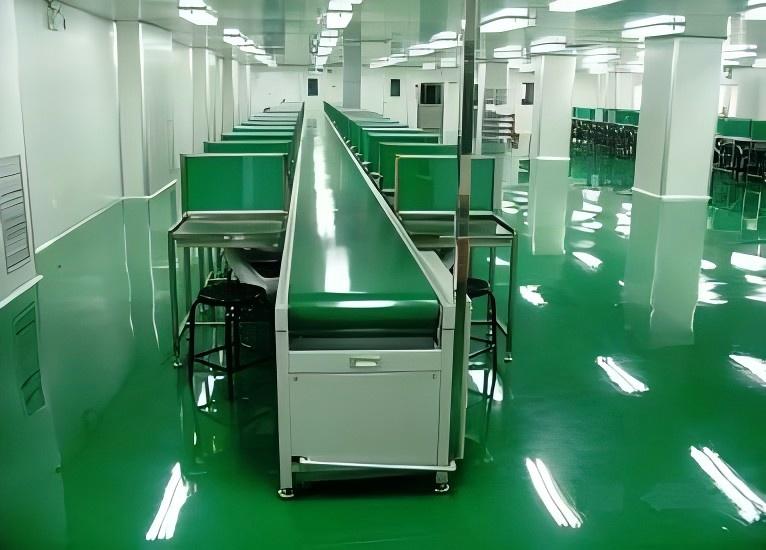

application
Electrostatic and anti-static rubber sheets (table mats, floor mats) are suitable for aerospace, national defense, coal mines, black powder, pyrotechnics, electric explosives, ammunition charge assembly, civilian blasting equipment, fireworks, electronic components, electronics, instruments and meters, liquefied petroleum gas tank stations, electronic semiconductor devices, electronic computers, electronic communication equipment, and integrated circuit microelectronics industries production workshops and warehouses paving static conductive rubber sheets, anti-static rubber sheets on the ground and work surfaces in order to eliminate The human body and the environment accumulate static electricity to prevent static electricity hazards and accidents and take necessary electrostatic safety protection measures.
The function of paving static conductive and anti-static rubber sheet (table mat, floor mat) ground and work surface is to effectively leak the static electricity on the human body, tooling, equipment, and materials into the earth, eliminating the harm of static electricity on the human body and the environment. Prevent fire and explosion accidents caused by electrostatic discharge in the production site of flammable and explosive products; prevent the breakdown of components and components caused by electrostatic discharge in the production site of electronic products; relieve the electrostatic shock and mental burden caused by electrostatic discharge of operators.
