RF EMI Shielding Fabric
01

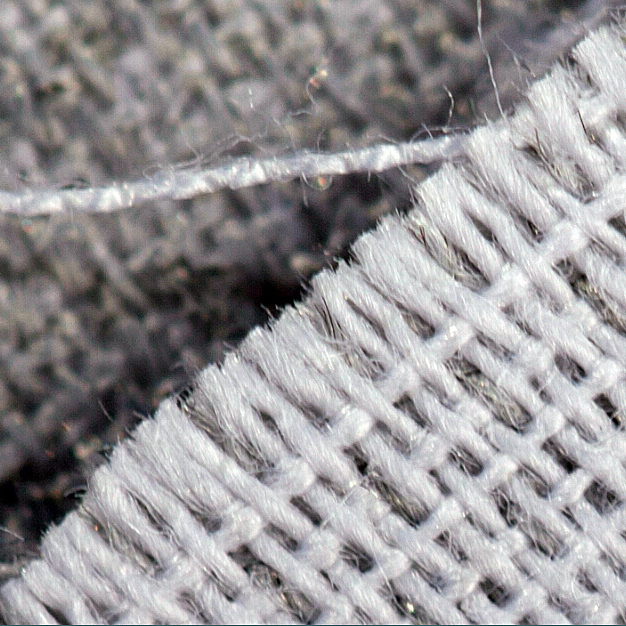

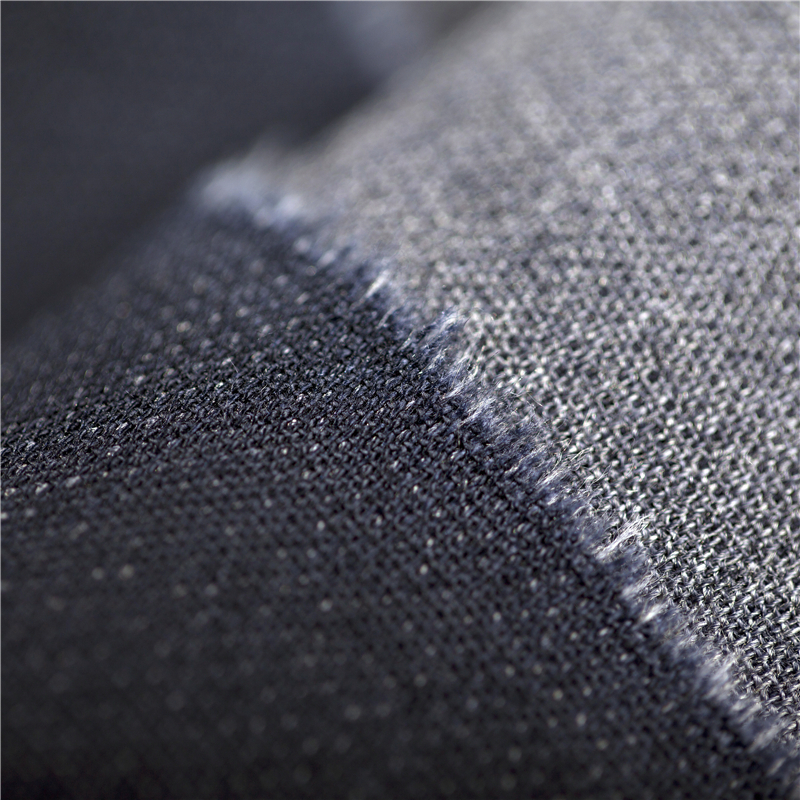

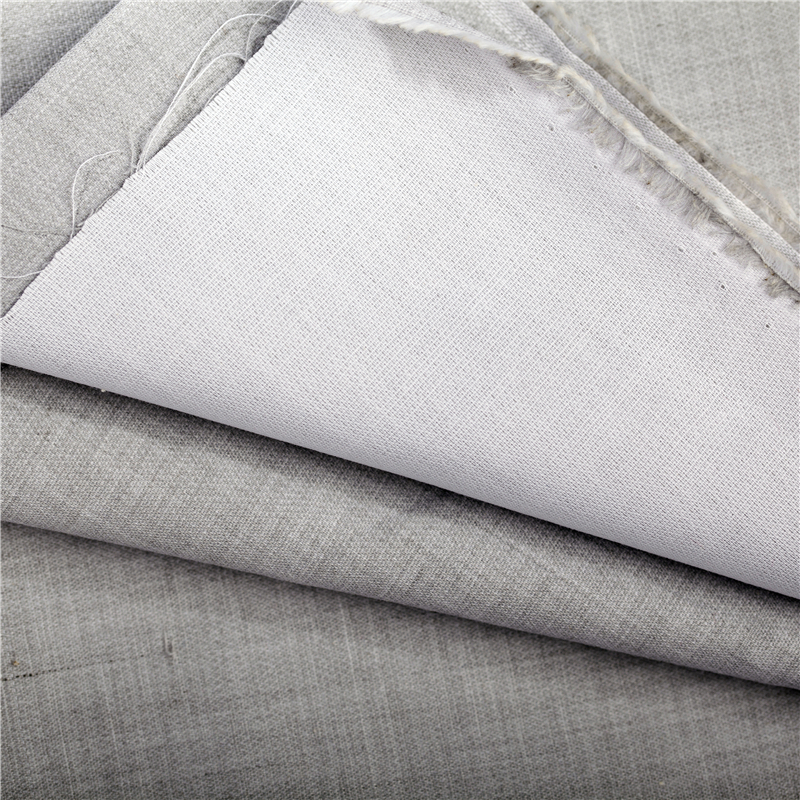

Double Faced Metal Fiber Conductive Fabric
product details
specification
| Brand | 3ltex |
| Product name | Double faced metal fabric |
| Part# | #DF-M30 |
| Material | Face: 100% cotton |
| Back: 30% stainless steel fiber 70% cotton | |
| Width | 150cm |
| Weight/m2 | 180g/m2 |
| Conductivity | 15-20 ohm/squre meter |
| Style | Twill, double faced woven |
| Color | BK WH grey (customized) |
Core Performance Features
Superior EMI/RF Shielding
Engineered with multi-layer composite technology, this material achieves >99% attenuation of electromagnetic interference (30MHz-18GHz spectrum) and industrial radiation, meeting MIL-STD-285 shielding standards through optimized metallic fiber integration.
Electrostatic Dissipation
Incorporates metal-infused conductive matrix with surface resistance <10-20ohm Ω/sq, enabling continuous static charge drainage while maintaining >85 CFM air permeability for thermal comfort.
Skin-Safe Ergonomics
Hybrid construction features medical-grade cotton lining direct-skin contact layer, combined with moisture-wicking cotton outer layer for 24-hour wearable.
Durability Parameters
Withstands 50+ industrial wash cycles (AATCC 135 testing) while retaining <5% conductivity loss, featuring tear strength for dynamic movement applications.
Washing & Maintenance
Use neutral detergent to wash softly,hand wash, under 40℃ water wash,no bleaching,no iron,dry in shade (drying temperature at 70-80 degrees Celsius, not excess 30 minutes).
Be exposed to the air, silver fiber can ‘t avoid oxidation, fabrics can be black or yellow, attributes normal phenomenon, it will not affect the shielding effect.
Avoid to contact sweat, once contact the sweat, wash the fabric asap,suggest keeping sealed preservation.
Industrial & Commercial Applications
Professional PPE Solutions
Radiation-shielded lab coats (5G/EMF protection: 28dB attenuation)
MRI technician uniforms (0.5T-7T field protection)
Consumer Electronics Integration
Smart clothing circuitry substrates
Wireless charging pouch liners
VR/AR headset radiation barriers
Specialized Textile Products
EMI-blocking maternity、industrial wear (35dB average shielding)
Conductive bedding systems (surface voltage <20V)
Anti-static and condcutive industrial curtains
