Cotton or Ployester with Stainless Steel Fiber Spun Yarn for Anti Static, EMI Shielding, Conductive
What can we offer you?
3ltex is a range of single or multi-ply spun Yarns. The yarns are a blend of stainless steel fibers with natural or synthetic fibers. This mix results in an efficient, conductive medium with antistatic and EMI shielding properties. Featuring thin diameters, 3ltex metal fiber spun yarns are very flexible and light.
3LTEX guarantees the safety and quality of your products. The spun yarns processed into a correct fabric configuration meet the international EN 1149-51 , EN 61340, ISO 6356 and DIN 54345-5 standards as well the OEKO-TEX® and REACH regulations that restrict harmful substances.
Benefits
• Easy to process using traditional Textile technologies
• Durable performance even after numerous washes
• Prevents electrostatic charging
• Suppresses EMI up to 50 dB in a frequency range of 10 MHz to 10 GHz
How does it work?
Cotton or Ployester with stainless steel fiber spun antistatic yarn
3ltex yarns have an electrical resistance ranging from 10 to 40 Ω/cm. The spun yarns efficiently dissipate any electrostatic charges safely to the ground. As described in EN1149-5, it is essential for a person to be grounded at all times.
Applications

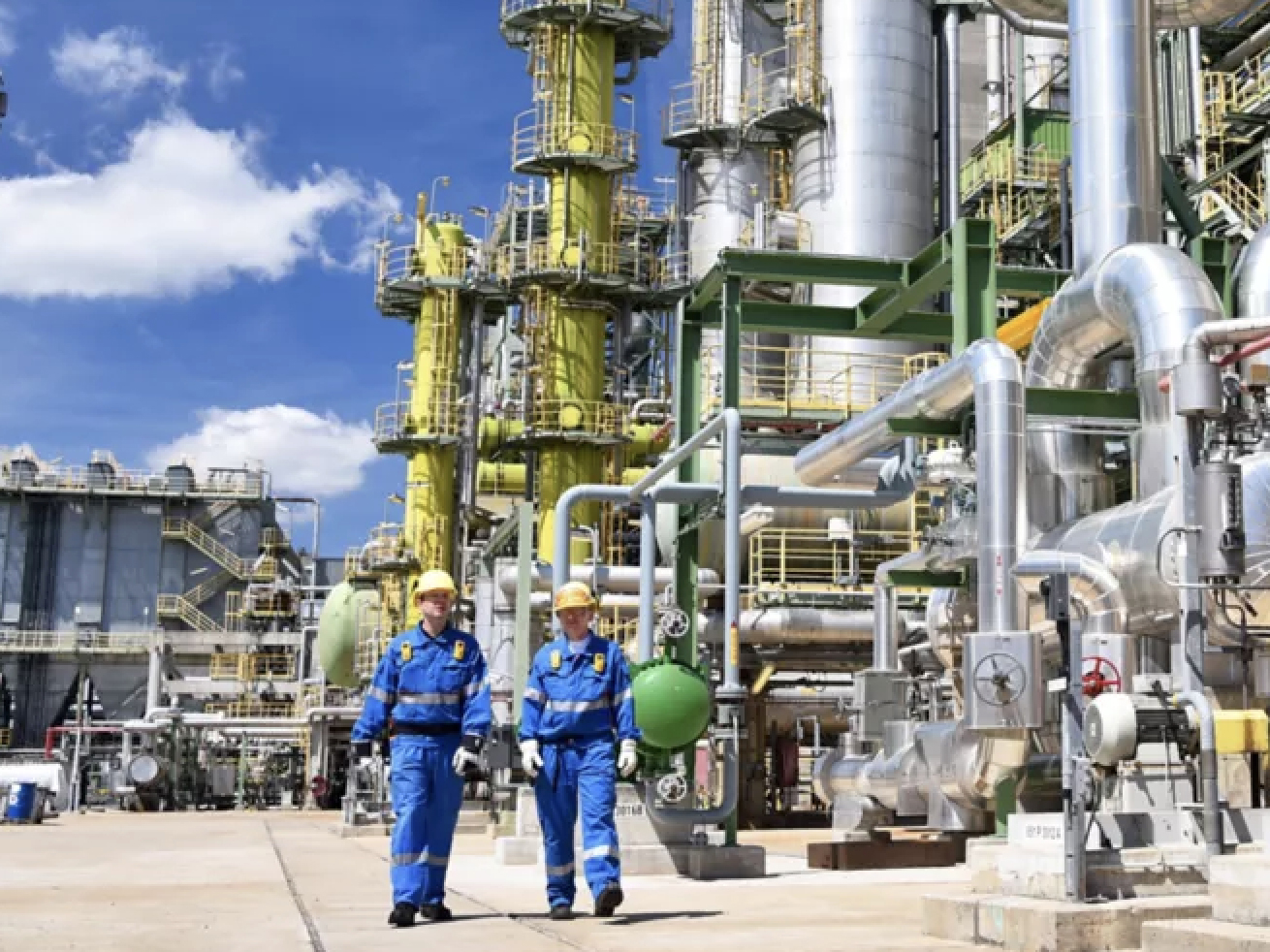

1. Protective garments and sewing yarn: provides optimal electrostatic protection, is comfortable to wear and easy to maintain.
2. Big bags: prevents potentially dangerous discharges caused by electrostatic built-up while filling and emptying the bags.
3. EMI shielding fabric and sewing yarn: protects against high levels of EMI.
4. Floor coverings and upholstery: durable and wear resistant. Prevents electrostatic charge caused by friction.

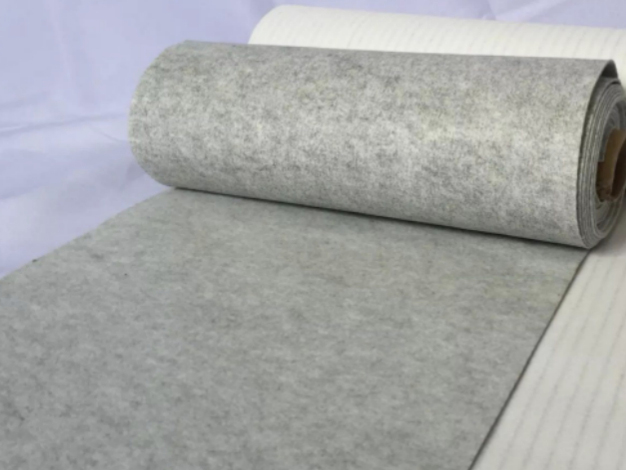

5. Filter media: provides excellent electrical conductive properties to the felt or woven fabric in order to prevent harmful discharges.
Product range
| 3ltex- Cotton or Ployester with stainless steel fiber spun yarn composition | Count | Electrical resistance* | |
| Nm | Dtex | ||
| Stainless steel metal fiber /Polyester | 20/2 | 1000 | 10 Ω/cm |
| Stainless steel metal fiber/Polyester | 50/1 | 200 | 25 Ω/cm |
| Stainless steel metal fiber/Polyester | 50/1 | 200 | 40 Ω/cm |
| Stainless steel metal fiber/Polyester | 50/2 | 400 | 20 Ω/cm |
| Stainless steel metal fiber/Polyester | 50/2 | 400 | 10 Ω/cm |
| Stainless steel metal fiber/Polyester | 50/3 | 600 | 15 Ω/cm |
| Stainless steel metal fiber/Cotton | 50/1 | 200 | 40 Ω/cm |
| Stainless steel metal fiber/Cotton | 50/2 | 400 | 20 Ω/cm |
Other types available on demand - yarns can dyed upon request *electrical resistance: measuring distance of electrodes = 5 cm
The electrical resistance is indicative. For exact values, please request a product specification.
Packing
• On cardboard cones of approximately 0.5 kg or 2 kg
• Cardboard boxes:
- 50 cones of 0.5 kg or ± 25 kg net of yarn
- 25 cones of 2 kg or ± 50 kg net of yarn
