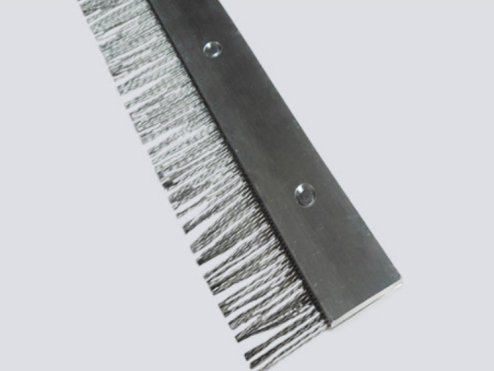

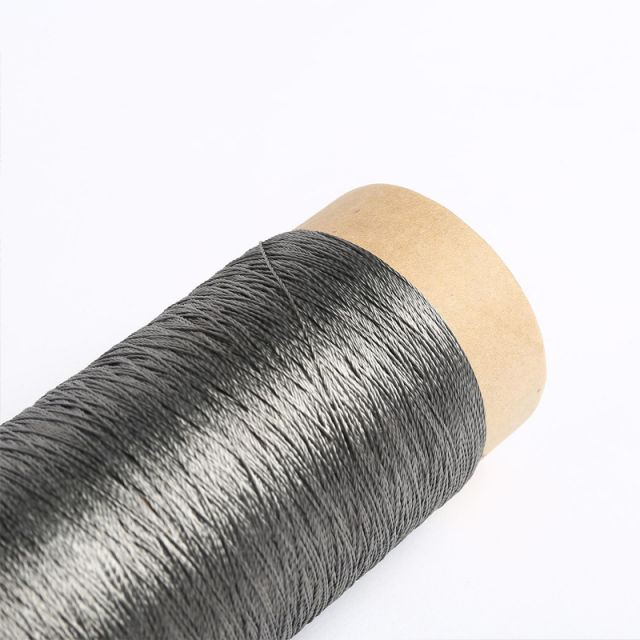

Stainless Steel Fiber Yarn

Stainless steel fiber wire are made by stainless steel metal wires drawing into fibers and the form of filaments can be bundle or twisting into mutiply ,due to stainless steel metal properties so it has high temperature resistance and conductive funtions which are widely used in microw cables, heating wire ,high tempterture resistant filter sewing etc , for conductive and heating wire we also sever insulation extrusion offering,outer extrude contents can be FEP,PFA,PTFE,TPU etc,for product more information and inquiring pls check with us.

product details

specification

Material	High-grade 316L stainless steel filament
FIBER Diameter	Ranges from 8u-14um
Single FiberStrength	≥19cN
Resistance	17-65Ω
Operating temp	500-600℃

Yarn count and Conductive resistance

Diameters (um)	Filaments	Strength (cN)	Weight (g/m)	Elongation (%)	Conductivity (Ohm/ m)
8	1000F x 1	69	0.420	1.10	16
8	1000F x 2	108	0.850	1.10	8
12	100F x 1	24	0.110	1.10	59
12	100F x 2	41	0.190	1.10	38
12	100F x 3	69	0.280	1.10	22
12	257F x 1	59	0.260	1.10	27
12	275F x 2	75	0.540	1.10	14
12	275F x 3	125	0.780	1.10	9
12	275F x 4	130	1.050	1.10	7
12	275F x 5	160	1.300	1.10	5
12	275F x 6	180	1.500	1.10	4
12	1000F x 1	100	0.950	1.10	7
12	1000F x 2	340	1.900	1.10	4
14	90F x 2	46	0.190	1.10	44
14	90F x 1	25	0.110	1.10

Characteristics

Corrosion Resistance: Stainless steel provides excellent resistance to rust and corrosion, ensuring longevity even in harsh conditions.

High Strength: The thread is incredibly strong, offering superior tensile strength compared to conventional sewing threads.

Heat Resistance: Ideal for environments exposed to high temperatures, as the thread can withstand heat without degradation.

Conductivity: The metallic nature of the filaments allows for electromagnetic shielding and other conductivity applications.

Durability: Exceptional wear resistance, making it suitable for heavy-duty and industrial uses.

Applications of Stainless Steel Filaments Yarn thread

Micro Cables:

Our stainless steel filaments are ideal for micro cables, offering enhanced strength and flexibility for intricate wiring solutions, while maintaining high performance in small-scale applications

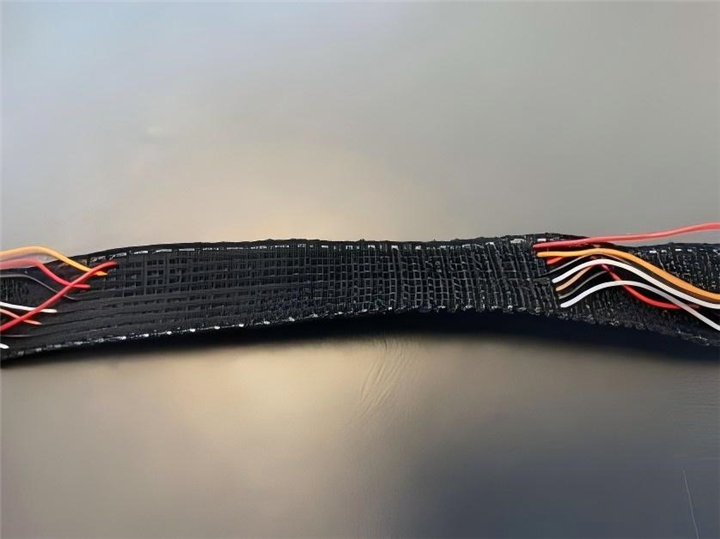

Stainless Steel Filament Twisting Wire (1)

Stainless Steel Filament Twisting Wire (2)

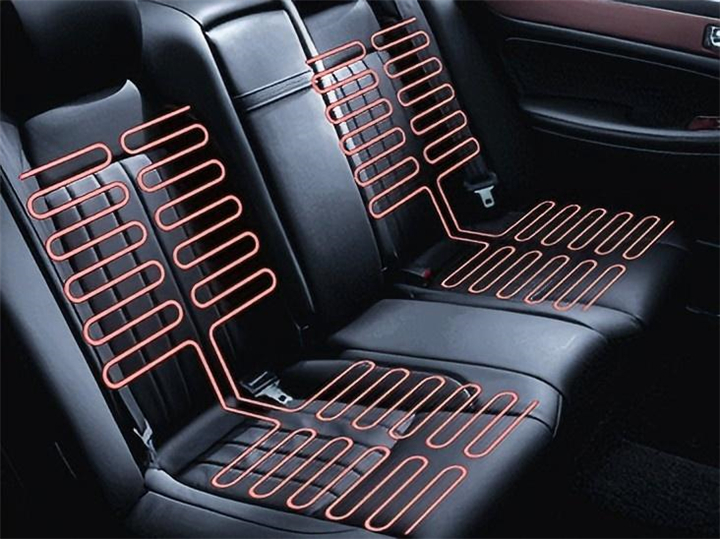

Heating Wire:

Perfect for use in heating wires, the stainless steel thread can withstand high temperatures and provides consistent heat distribution, making it an excellent choice for heating elements in various industries.

Anti-static:

The conductive properties of stainless steel filaments help to dissipate static charges, making the thread suitable for anti-static applications in environments sensitive to electrostatic discharge (ESD), such as electronics manufacturing.

High Temperature Resistant Sewing:

With its ability to endure extreme heat, our stainless steel thread is perfect for high-temperature resistant sewing applications, used in textiles and garments exposed to elevated temperatures, such as protective clothing and industrial uniforms.

E-textiles:

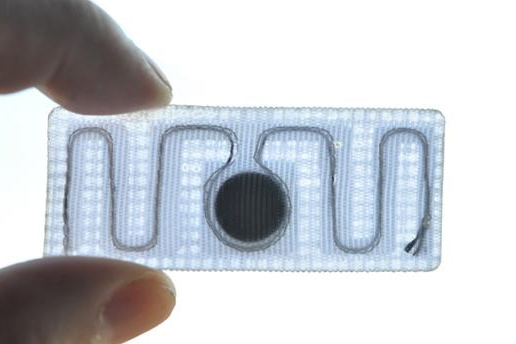

The stainless steel thread can be integrated into electronic textiles (e-textiles), allowing for the creation of fabrics with embedded electrical functions, such as heating elements, sensors, and conductive pathways, ideal for wearable technologies. For example, the RFID laundry tag inner wire is mostly using the stainless steel thread.
