Ultra-Fine Silver Alloy Mono-Filament
product details
Ultra-Fine Silver Alloy Mono-Filament
Extra fine silver plated Mono-filament features of extremely low resistance and excellent conductivity, mainly used in extra strict precision electronic instrument producing, EMF shielding,conductive textiles,anti-bacterial,anti-static textiles, etc.
specification
| Product Name | Extra fine silver plated Mono-filament |
| Plating material | Silver |
| Core Material | Silver copper alloy |
| Outer | Dia 20-50um |
| Conductivity | 0.5-20Ohm/m |
Characteristic
Electrical conductivity: Silver-copper alloy combines the high electrical conductivity of silver with the mechanical strength of copper, making it suitable for high electrical conductivity needs.
Mechanical properties: Alloy wire has good ductility and tensile strength, which is easy to process and durable.
Corrosion resistance: The addition of silver improves the oxidation and corrosion resistance of the alloy and prolongs the service life.
Weldability: The alloy wire is easy to weld and is suitable for the assembly of precision electronic instruments.
application

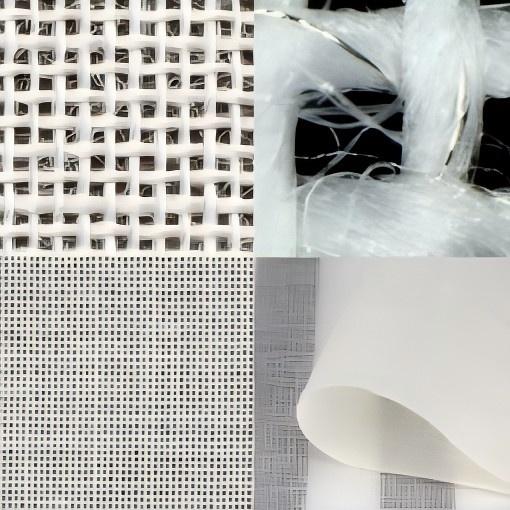

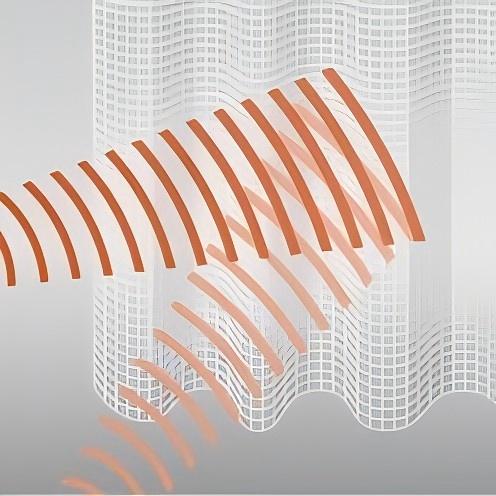

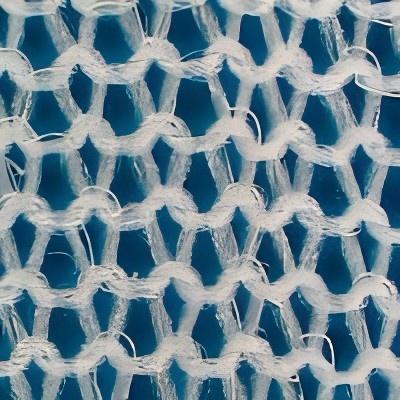

Yarn and Fabric for EMI shielding
In today's world, people are increasingly concerned about electrosmog. textiles containing our silver alloy monofilament wire offer excellent protection against electromagnetic radiation. In the frequency range of mobile communication,for example,protection values of approx. 40dB (99%) can be achieved.
ESD applications
Electrostatic charge can be prevented by using conductive materials and implementing grounding measures, fabric containing our silver alloy monofilaments wires offer high conductive and can therefore be used for Static Elimination applications.
Miniature connectors: for high-density connectors to ensure the stability of signal transmission.
Sensor: Used as a sensitive element in temperature, pressure and other sensors to improve accuracy and response speed.
Miniature coils: used in miniature motors and transformers to provide high-efficiency electromagnetic performance.
Precision circuits: Used as wires in high-frequency circuits to reduce signal loss.
